PLC REEL/CARGO w/ PINLESS POWERLOCK™
TANDEM AXLE LONG BED
SINGLE AXLE SHORT BED
(Reelstands on outside of cargo bay available on all models as shown)
VALUE ADDED STANDARD FEATURES
PINLESS POWERLOCK™ LIFETIME WARRANTY
VIRTUALLY ZERO MAINTENANCE
Yellow Zinc Electroplated
-OPEN TOP, "NON ENCAPSULATED" NYLATRON BEARING SADDLE (low-coefficient of friction). OPEN TOP = LESS FRICTION/LOW MAINTENANCE and EASIER PAY-OUT.
(Haven't Replaced a Saddle in 13 Years)
-Standard Cross Tongue Toolbox with Lid Lift Maintainer
CAPACITIES:
SINGLE 10K AXLE: 8K lbs
Cargo Area: 10' x 5' x 18" or 24" Deep
TANDEM 7K AXLES: 10K lbs
TANDEM 10K AXLES: 16k lbs
Cargo Area: 11' x 70" x 18" or 24" Deep

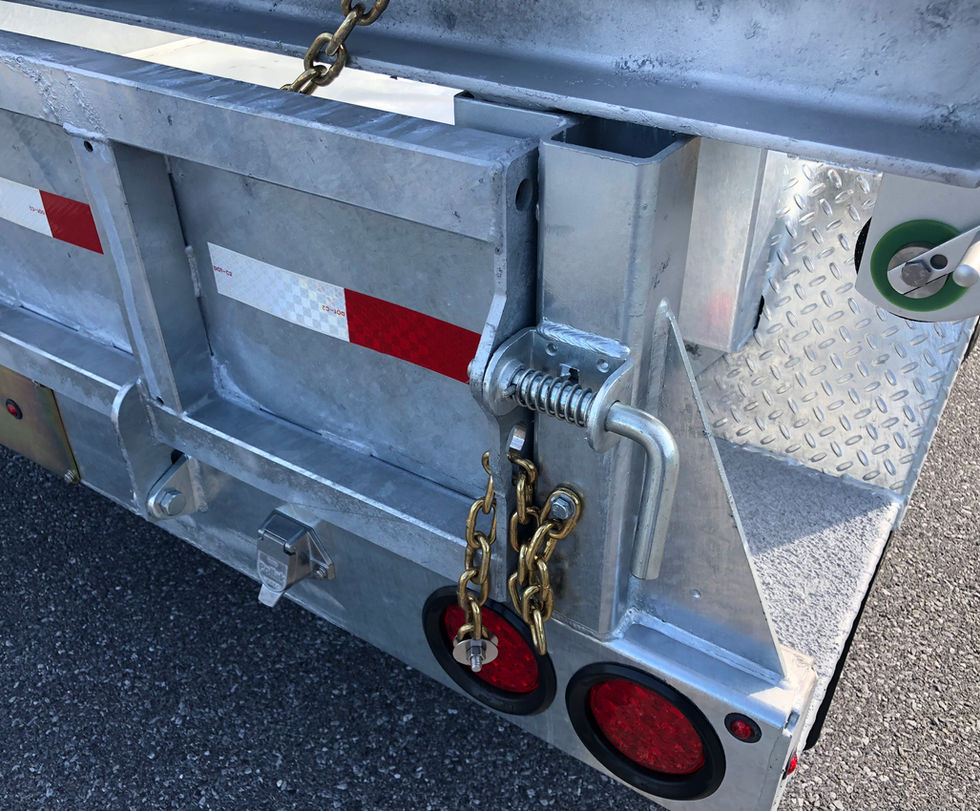

POWERLOCK™ = OPEN
POWERLOCK™ = CLOSED
Pull the POWERLOCK™ and it automatically stays open. Just tap down on handle and it positively shuts w/ HIGH TENSION. There's nothing heavier duty, lower maintenance, easier to use or safer.
NOTE: WE'VE NEVER REPLACED A POWERLOCK IN 10 YEARS DUE TO WEAR.
OPTIONS:
16" VENTILATED TRU-STOP SELF-COOLING
REEL BRAKE W/ VENTILATED GUARD.
PULL/LOCK TYPE. NOTHING TO DISASSEMBLE.
3,300 FT/LBS RETRIEVER
(Universal Capstan Adapter Optional)
SELF-SECURED BAYONET/DIRECT
DRIVE ADAPTER
REEL BRAKE w/ RETRIEVER COMBO
16" VENTILATED TRU-STOP SELF-COOLING
REEL BRAKE W/ VENTILATED GUARD.
DROP-IN TYPE. NOTHING TO
DISASSEMBLE.
13 HP HONDA ENGINE HYDRAULIC POWER PACK COMES STANDARD W/ ENGINE COVER
16" LONG 8-BOLT HITCH EXTENSION
ROTATING ARBOR GROUND
LUG NUT INDICATORS
LATERAL TURRET OPTION
(Size Customizable)
GALLERY
PLC8 SINGLE AXLE SHORT BED
